TECHNOSYS Stock Clearence.....

Swift Duo - Video Measuring Machine

Swift-Duo. Why video and optical measurement?

Dual video and optical measurement technologies provide the best of both worlds, so whatever component you are measuring, you can be sure you have the best tools for the job, in a single system, without any hold-ups.

Offer Price - 5 Lakh
original price - 14 Lakh

Inverted Microscope | Epiphot-300

Inverted Microscope | Epiphot-300

The versatile Epiphot 300 Inverted Metallurgical Microscope : the rock solid answer to your research needs. A model of technological integration, Nikon's Epiphot 300 combines the superb CF Infinity Corrected Optical System with a matchless degree of operator comfort and rock solid stability. Add to this a full range of photomicrographic capabilities, as well as scale imprinting, and you have a cutting edge instrument providing the highest possible optical performance.

Offer Price : ₹ 8,00,000
Original Price :  ₹ 16,00,000   (50%off )
shuttle pix - portable microscope of Nikon metallurgical testing

ShuttlePix -  Digital. Powerful. And best of all, portable.

"Grab It and Go" Concept
Zoom Camera Head
Magnification - 20x~400x (17inch Monitor)
Optical Zoom Ratio 20:1
CCD - 1/1.8 inch color CCD
Total number of pixels: approx. 2.11mp
Storage Media - USB Memory (Also possible to choose SD memory card slot)
Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD
Storage Media - TIFF, JPEG (Compressibility 3steps)
Light Source - White light LED
Capable of choosing 4 illumination directions
Actual FOV - Max φ20mm
Working Distance - 29mm
Tool Function - Scale display
Motorized Focusing Stand
Z Axis Stroke - 150mm (Motorized Control)
Maximum Sample Size - 75mm (W) x 32mm (D) x 148mm (H) (Depends on combination with stage)


Offer Price : 10,00,000 ₹
Original Price : ₹  18,00,000 ( 55 % off)





Via matsuzawa micro hardness tester closed loop cell testing high end micro-vickers hardness tester

Mic 10 portalbe Micro Hardness Instrument

Method of measurement: Vickers penetration with indentation evaluation by the UCI method under load (diamond angle 136°)

UCI probes: To be selected according to application:

Handheld probes: 10 N (1 kgf) standard MIC 201-A short MIC 201-AS extended MIC 201-AL 50 N (5 kgf) standard MIC 205-A short MIC 205-AS extended MIC 205-AL 98 N (10 kgf) standard MIC 2010-A

Motor probes: 8.6 N (0.9 kgf) MIC 211 3 N (0.3 kgf) MIC 2103-A 1 N (0.1 kgf) MIC 2101-A

Range: 20 - 1740 HV

Conversion: HV, HB, HRC, HRB N/mm² (only with the 10 kgf handheld probe) according to DIN 50150, ASTM E 140

Display: 4 digit LCD with switchable backlight

Weight: approx. 300g

Dimensions: 160 x 70 x 45 mm, 6.3 x 2.8 x 1.8 inches (W x H x D)

Permissible ambient temperature: In operation: -15°C to 55°C(5°F to 131°F) In storage: -20°C to 60°C (-4°F to 140°F)

Power: 2 x 1.5V AA batteries

Operational duration: approx. 15 hours without backlight

Offer Price :1,00,000 ₹
Original Price : 3,00,000 ₹  (33 %off)
shuttle pix - portable microscope of Nikon metallurgical testing

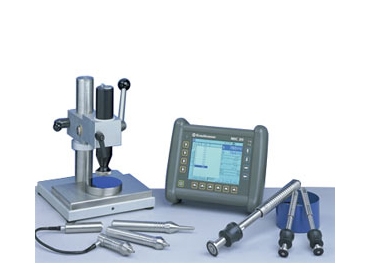

Multifunction hardness tester MIC-20

Range: 20-1740 HV / 76-618 HB / 41-105 HRB /20.3-68.0 HRC / 255-2180 N/mm² (UCI)  150-1000 HL / 75-1000 HV / 75-700 HB / 30-100 HS / 35-100 HRB / 19-70 HRC / 250-2200 N/mm² (Rebound)
Weight: 1.4 kg



Offer Price : 3,50,000 ₹
Original Price : ₹  7,00,000 ( 50 % off)





Via matsuzawa micro hardness tester closed loop cell testing high end micro-vickers hardness tester

USM Go Portable Ultrasonic Flaw Detector

The USM Go+ ultrasonic flaw detector is simple to operate using one hand with new arrow-keys. It weighs less than 2 pounds, is robust and well sealed meeting IP67, and built to withstand the rigors and use in harsh industrial environments. It's large, high resolution (WVGA) A-Scan display and outstanding ultrasonic performance are essential for inspections based on common codes and standards. The first choice when top UT performance, combined with ultra-portability and one-hand operation is required.

Offer Price :2,00,000 ₹
Original Price : 5,00,000 ₹  (40 %off)
shuttle pix - portable microscope of Nikon metallurgical testing

USM 36 - Ultrasonic Flaw Detector

Key features
  • Largest Viewable A-Scan Display in its Class
  • Simple and Efficient Operation
  • Flexible Data Reporting and Storage
  • Comprehensive Connectivity
  • Can be Used in the Harshest of Environments
Applications
  • Weld Inspection in the Power Generation and Petrochemical Industries
  • Precise Thickness Measurement in the Automobile Industry
  • Corrosion Measurement in the Power Generation and Petrochemical Industries
  • Inspection of Forgings
  • Inspection of Special Materials
  • Inspection of Special Materials

Offer Price : 3,00,000 ₹
Original Price : ₹  6,00,000 ( 50 % off)
